LESER Best Availability Change-over Valve Type 330
LESER Best Availability Change-over Valve Type 330
LESER Best Availability Change-over Valve Type 330

Best Availability

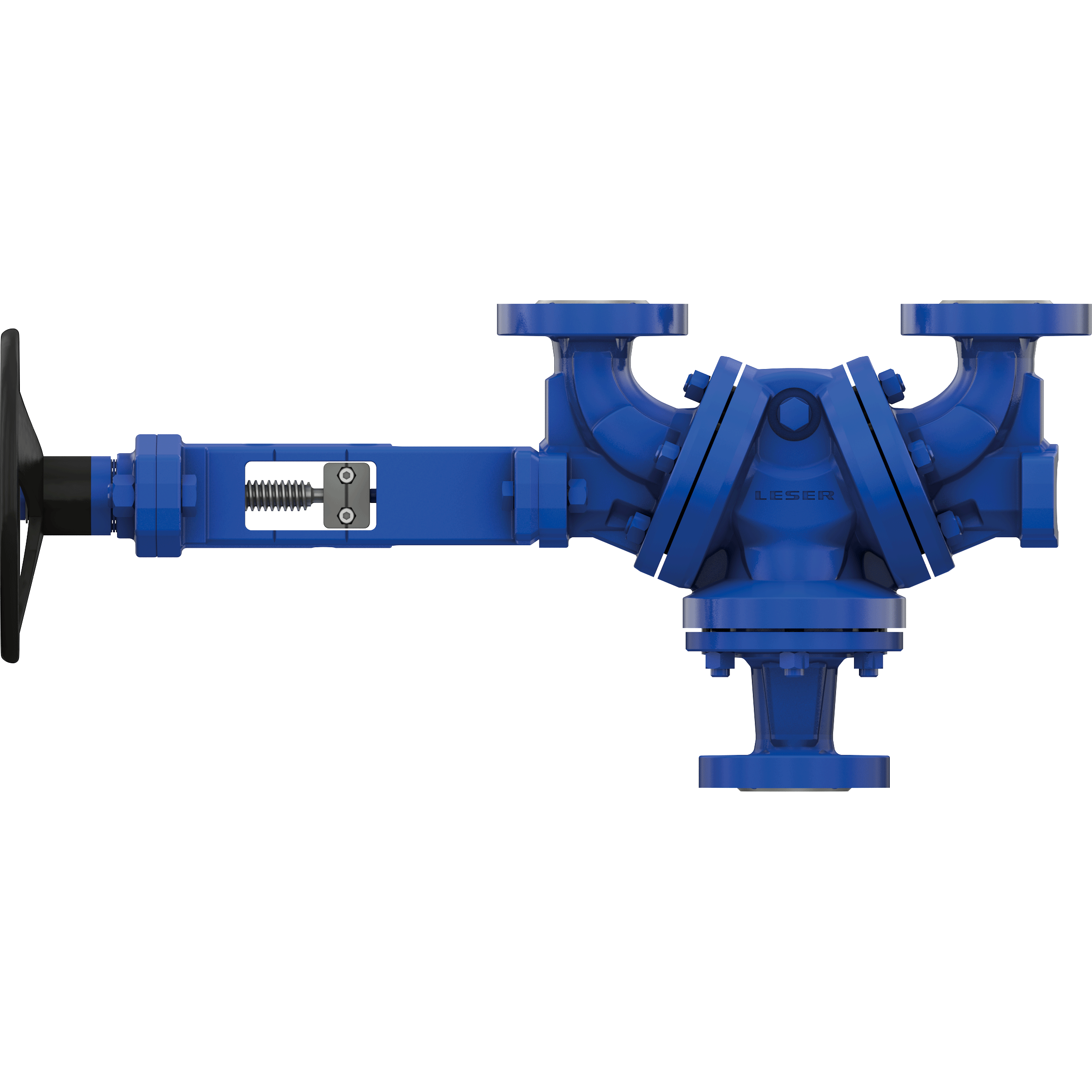

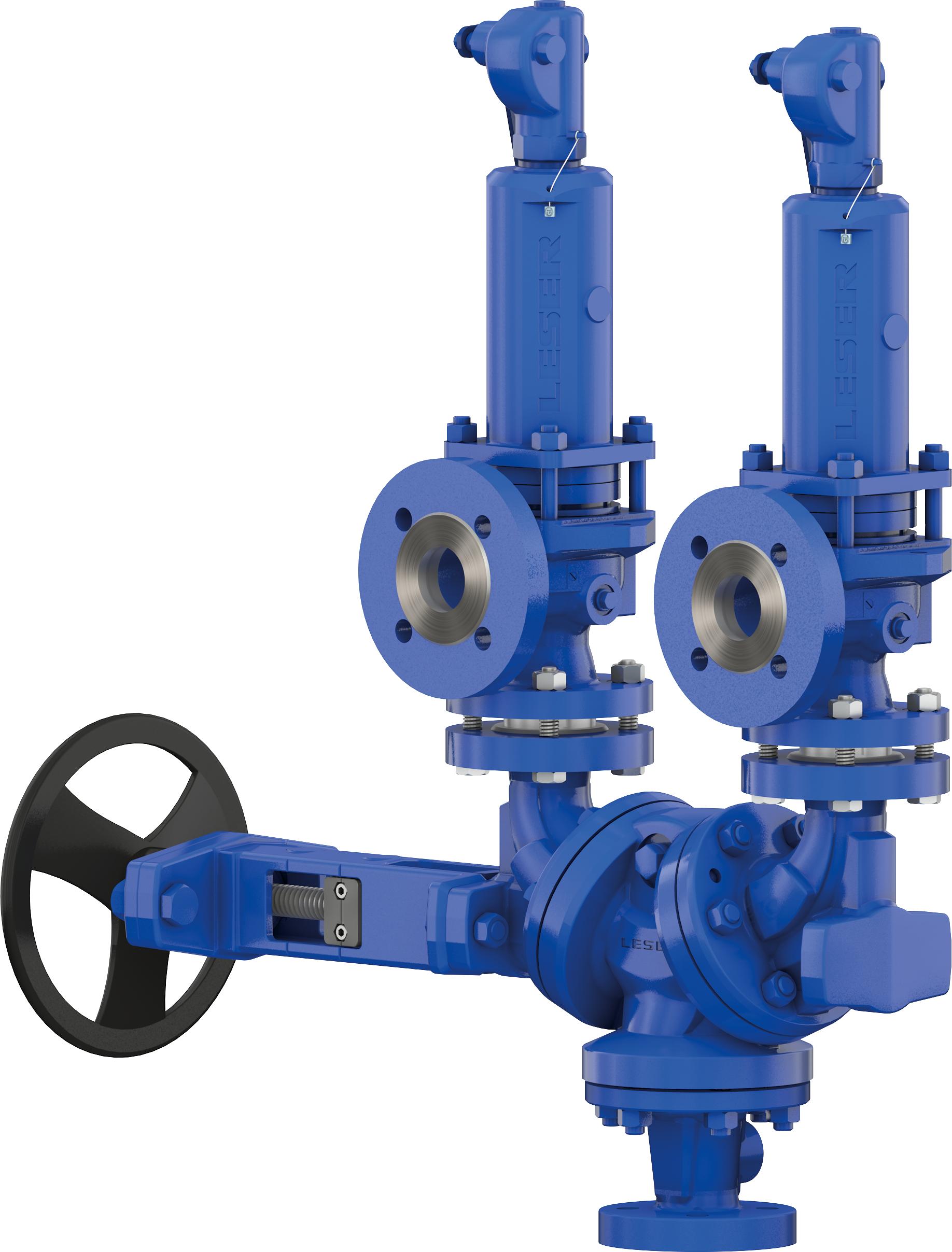

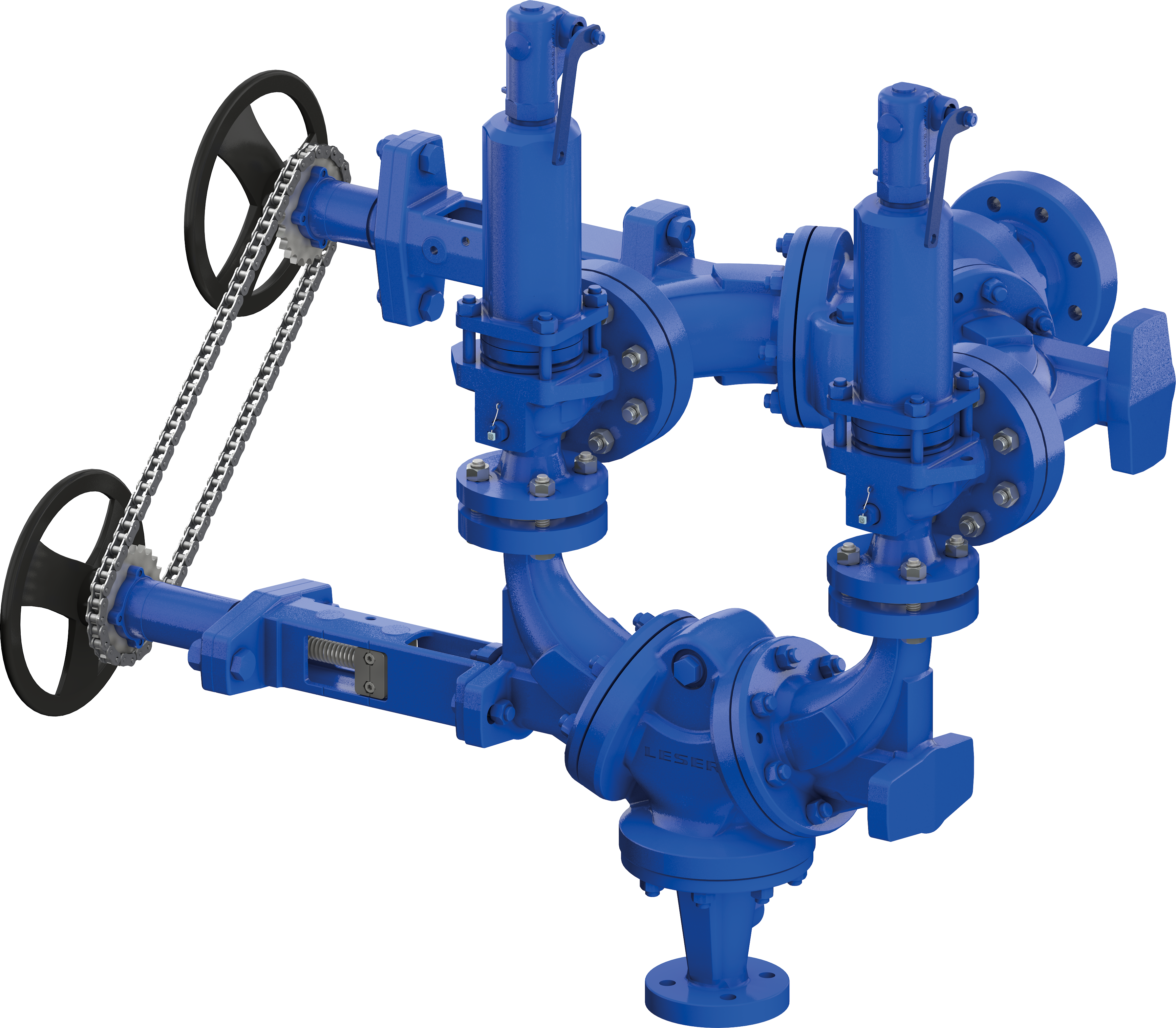

Type 330 Compact

Casted change-over valve

Industries

Approvals

LESER Change-over valves of Type 330 Compact are designed, marked, produced and approved according to the requirements of the following regulations:

  • LESER CE Approvel
  • LESER EAC Approvel
  • LESER CRN Approvel

Technical specifications Type 330 Compact

Nominal Diameter at Inlet
DN 25 - DN 400 | 1'' - 12''
Flange Rating Inlet
PN 10 - PN 40 | CL150 - CL300
Temperature (in accordance with DIN EN)
-211 to 400 °C | -348 to 752 °F
Temperatur (nach ASME)
-211 to 400 °C | -348 to 752 °F
Body Material
1.0619, 1.4408 | WCB/WCC, LCB, CF8M
Approvals
DGRL 2014/68/EU, TR-CU 010, TR-CU 032
