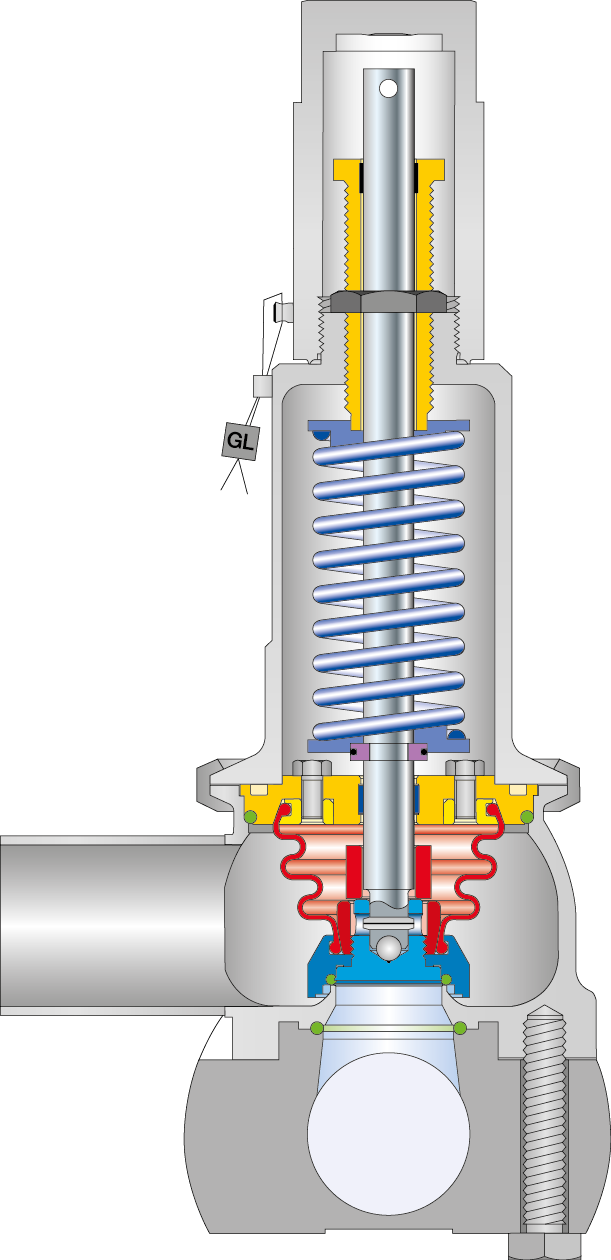

Technical specifications Type 485
- El diámetro nominal a Entrada
- DN 25 - DN 40 | 1'' - 2''
- Orificio
- D - F
- Diámetro real Orificio d₀
- 13 - 25 mm | 0.512 - 0.984 in
- Orificio Área real A₀
- 133 - 491 mm² | 0.206 - 0.761 in²
- Presión
- 0.1 - 16 bar | 1.5 - 232 psig
- Temperatura (de acuerdo con DIN EN)
- -45 to 250 °C | -49 to 482 °F
- Cuerpo Material
- 1.4435 (BN2) | SA 479 316L
- Válvula Conexión
- Inlet: Integrated pipework connection type 5034 for welding into the pipe with welded connection acc. to ISO 2037, DIN 11850 oder DIN EN ISO 1127 Outlet: Clamps acc. to ASME BPE /DIN 32676, ISO 2852 or DIN EN ISO 1127, Aseptic clamp acc. to DIN 11864 T1 Series A or B (with nut) or DIN 11851, Neumo Sterile aseptic thread (with nut), Welded end connection acc. to DIN 11850, Flange acc. to DIN 11864 T2 Series A or B or Aseptic or Nut flange, Smooth flange
- Fuelle Material (opción al)
- EPDM
- Cargar Tipo
- Spring loaded
- Aprobaciones
- PED/ DIN EN ISO 4126-1, PED/ AD 2000-Merkblatt A2, ASME Sec. VIII Div. 1, CRN, AQSIQ, EAC
- Especiales
- HyTight Assembly Designed and manufactured acc. to: DIN 11866, ASME BPE, EN 1672-2, DIN ISO 14159, USP class VI and FDA 21 CFR
