Critical Service

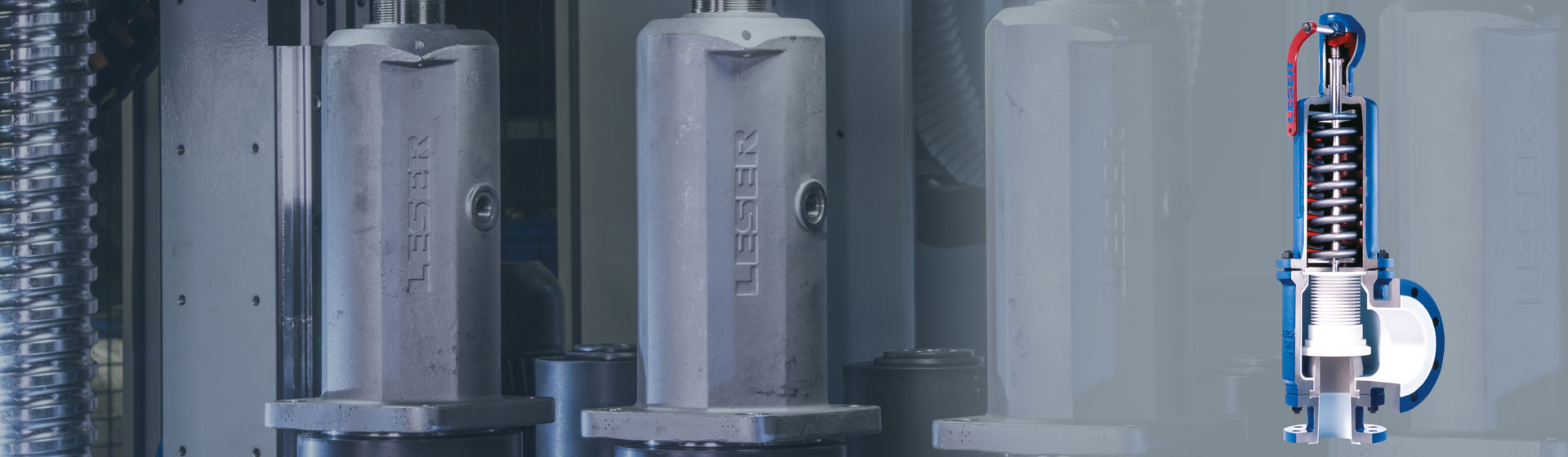

Critical Service Seguridad sietetil de LECTOR

Safety valves with PTFE-lining for corrosive media

Medium-touched components made of corrosion resistant PTFE
Safety valve for the protection of highly corrosive media
Cost-effective alternative to high-alloyed materials
ATEX-compliant version in electrically conductive PTFE possible

Industrias

Chemical

Aprobaciones

LESER Critical Service safety valves are designed, marked, produced and approved according to the requirements of the following regulations:

Tipos de válvula

PTFE-full lining at the inlet and outlet area for highly corrosive medium

DN 25 - DN 100 (1" - 4")

Block body valve with flushing protective gas, all special materials available

DN 25 - DN 100 (1" - 4")

Technical data Critical Service

El diámetro nominal a Entrada: DN 25 - DN 100 | 1" - 4"
Diámetro real Orificio d₀: 23 mm - 92 mm | 0.91 in - 3.62 in
Orificio Área real A₀: 415 mm² - 6.648 mm² | 0.645 in² - 10.304 in²
Presión: 0.1 bar - 16 bar | 1.45 psig - 232 psig
Temperatura (de acuerdo con DIN EN): -85 °C to 200 °C | -121 °F to 392 °F
Cuerpo Material: 1.0460, 1.0619 | SA 105, SA 216 WCB
Válvula Conexión: Flange in accordance with DIN EN 1092-1 and ASME B 16.5
Fuelle Material (opción al): Stainless steel, PTFE, Hastelloy C276
Cargar Tipo: Spring-loaded

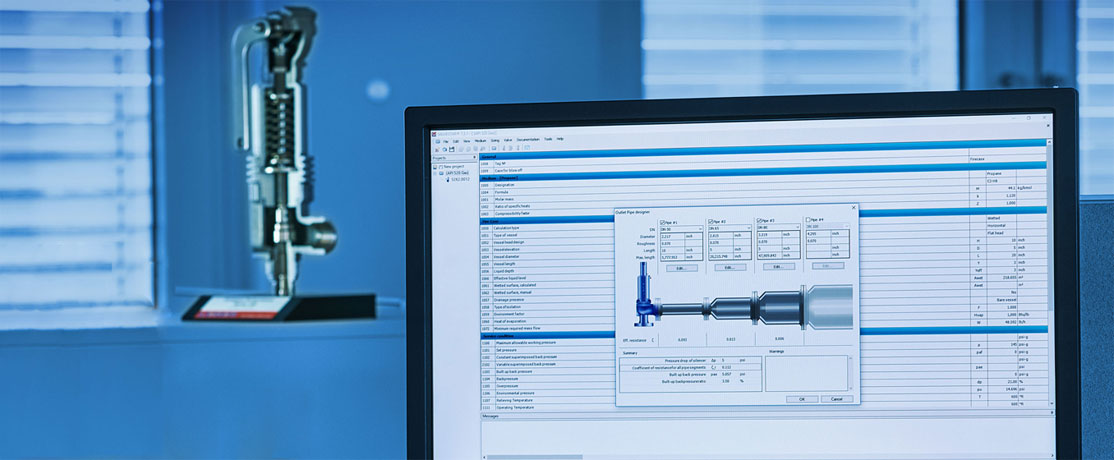

Valvestar de LESER
