API

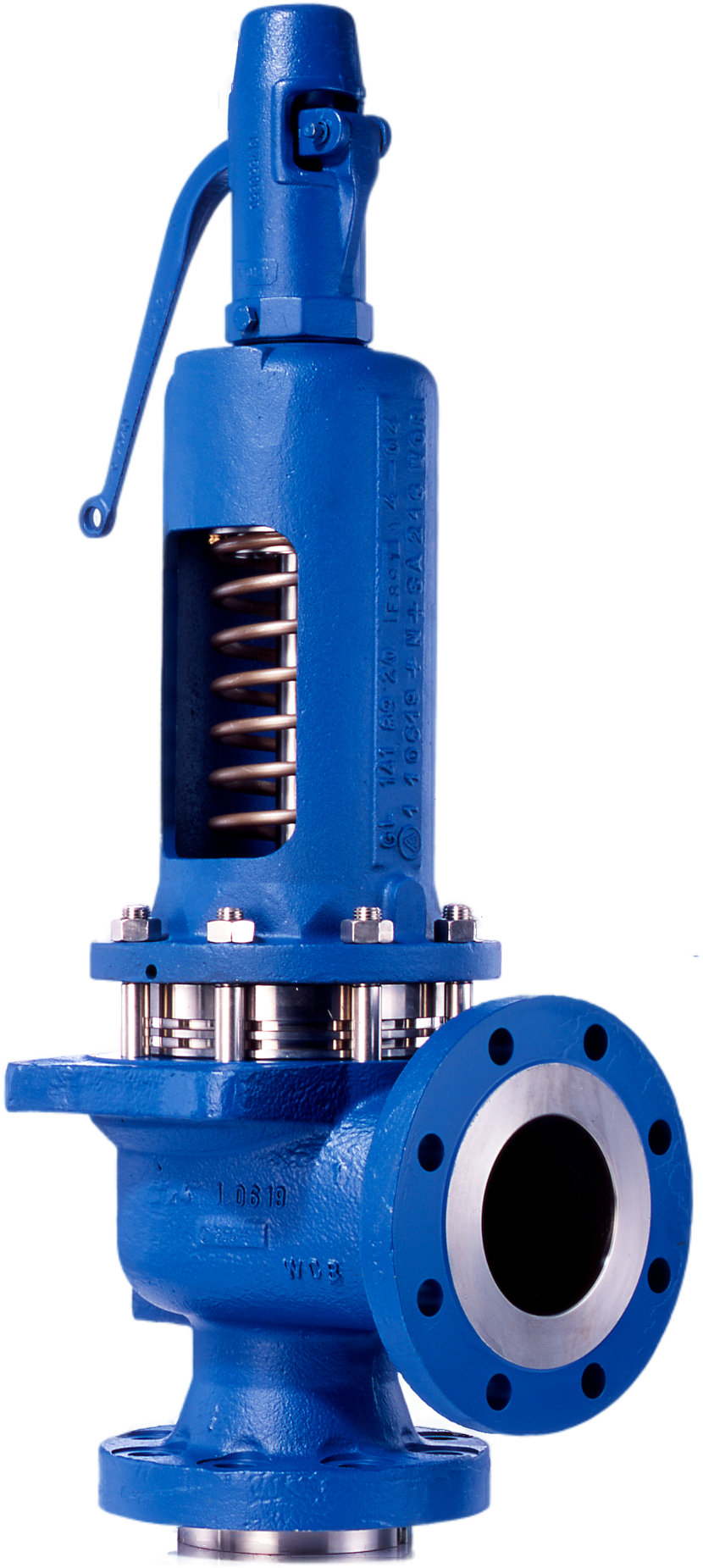

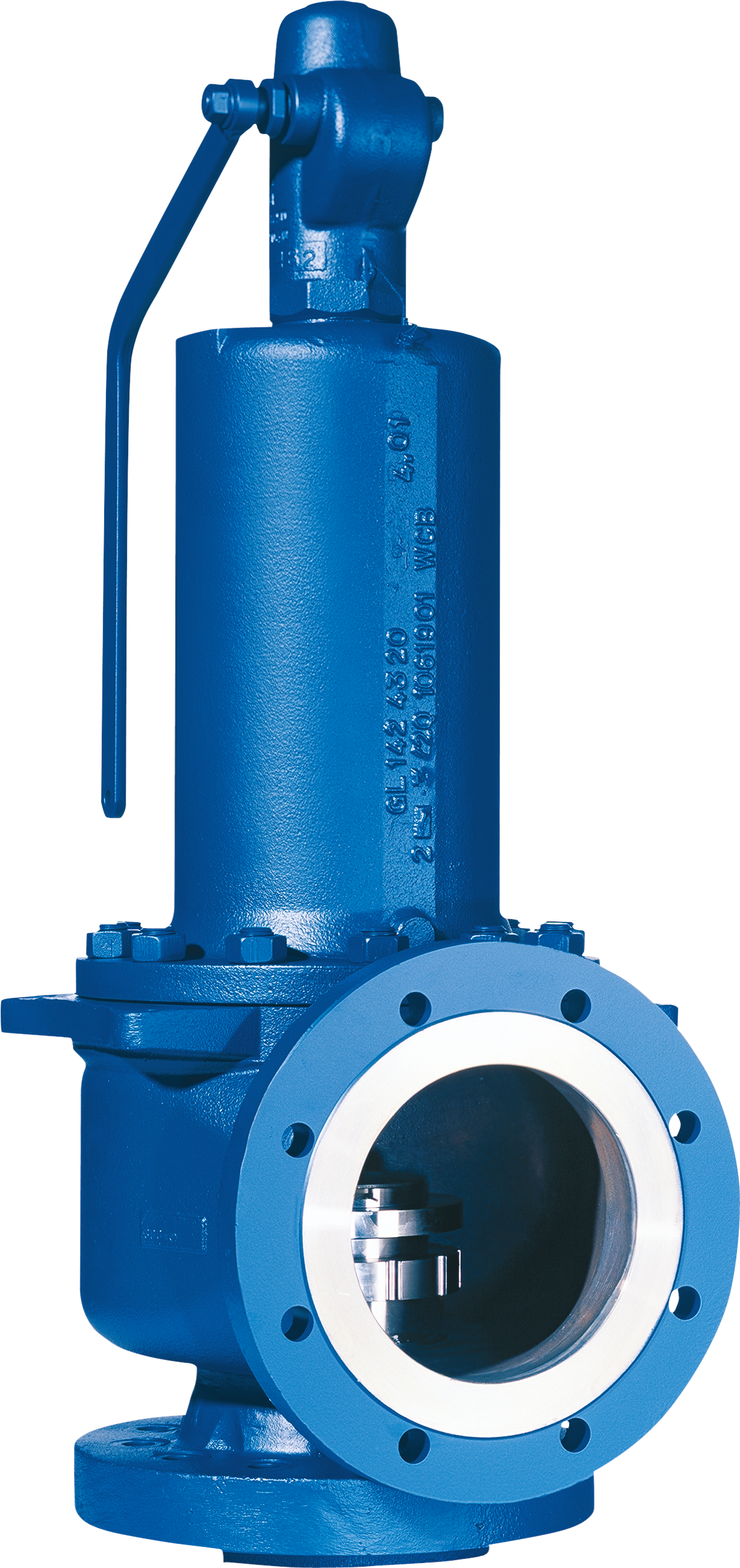

Type 526

Safety valve for the fulfillment of API 526

Approbations

LESER API safety valves of Type 526 are designed, marked, produced and approved according to the requirements of the following regulations:

  • Approbation LESER CE
  • Approbation de l'ASME LESER
  • Approbation de l'EAC LESER
  • Approbation de LESER China TS

Technical specifications Type 526

Diamètre nominal à Entrée
DN 25 - DN 200 | 1" - 8"
Orifice
D - T
Diamètre réel Orifice d₀
14 - 161.5 mm | 0.551 - 6.36 in
Superficie réelle Orifice A₀
154 - 20485 mm² | 0.239 - 31.75 in²
Pression
0.12 - 413.8 bar | 2 - 6000 psig
Évaluation des brides Entrée
CL150 - CL2500
Température (selon la norme DIN EN)
-270 to 550 °C | -454 to 1022 °F
Température (selon la norme ASME)
-268 to 538 °C | -450 to 1000 °F
Corps Matériau
1.0619, 1.4408, 1.7357 | SA 216 WCB, SA 351 CF8M, SA 217 WC6, SA 352 LCB, SA 351 CF3M, SA 995 Gr 4A CD3MN (Duplex), SA 494 M35-1 (Monel), SA 494 CX2MW (Hastelloy), SA 494 CW-6MC (Inconel)
Valve Connection
Flange acc. to ASME B 16.5 or acc. to DIN EN 1092-1 or acc. to JIS 2220
Soufflet Matériau (optional)
INCONEL® 625
Type de chargement
Spring loaded
Approbations
ASME Sec. VIII Div. 1, DGRL/DIN EN ISO 4126-1, DGRL/AD 2000-Merkblatt A2, AQSIQ, EAC
Sociétés de classification
LR, RINA, DNV GL, BV, ABS, KR
