Modulate Action

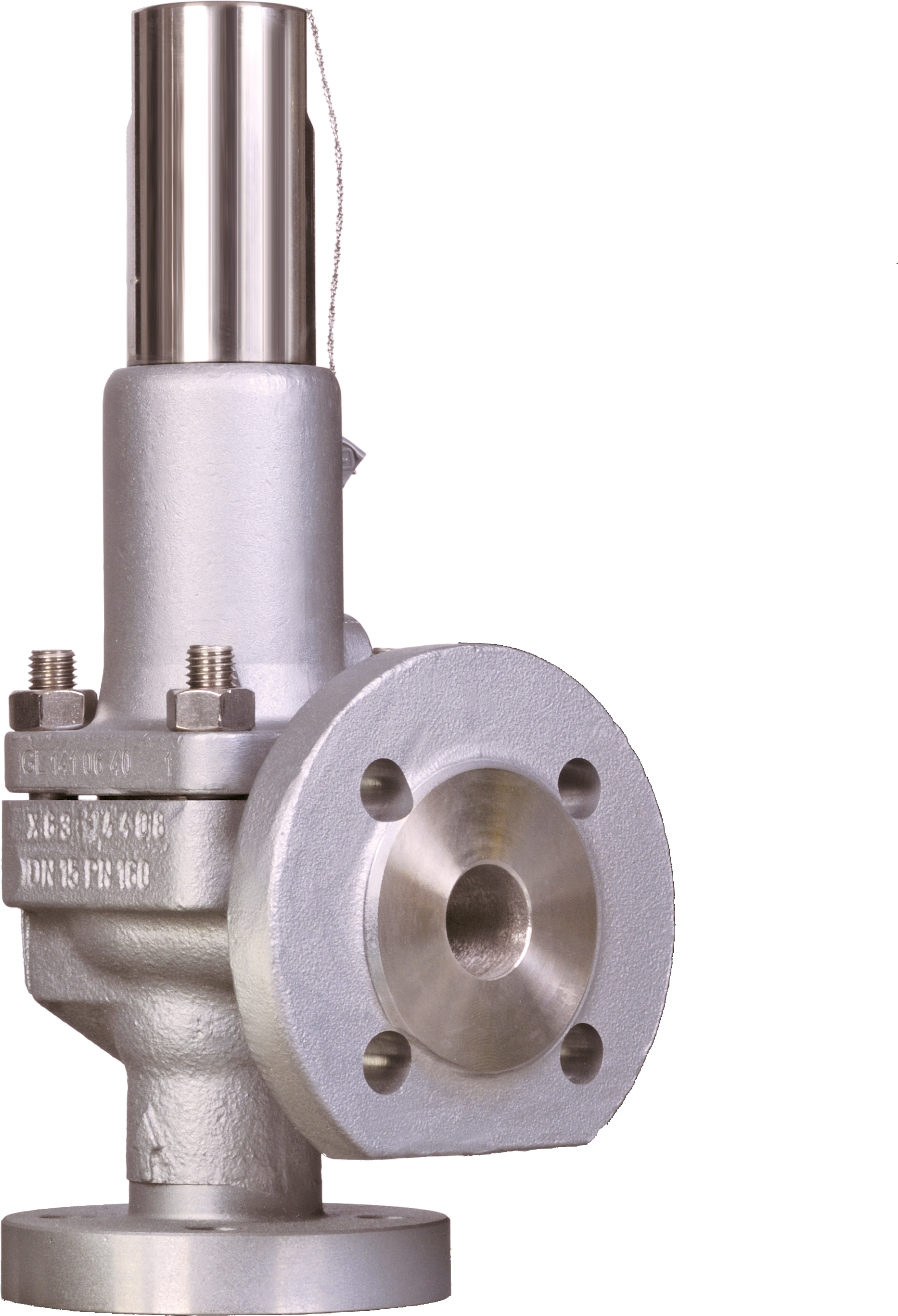

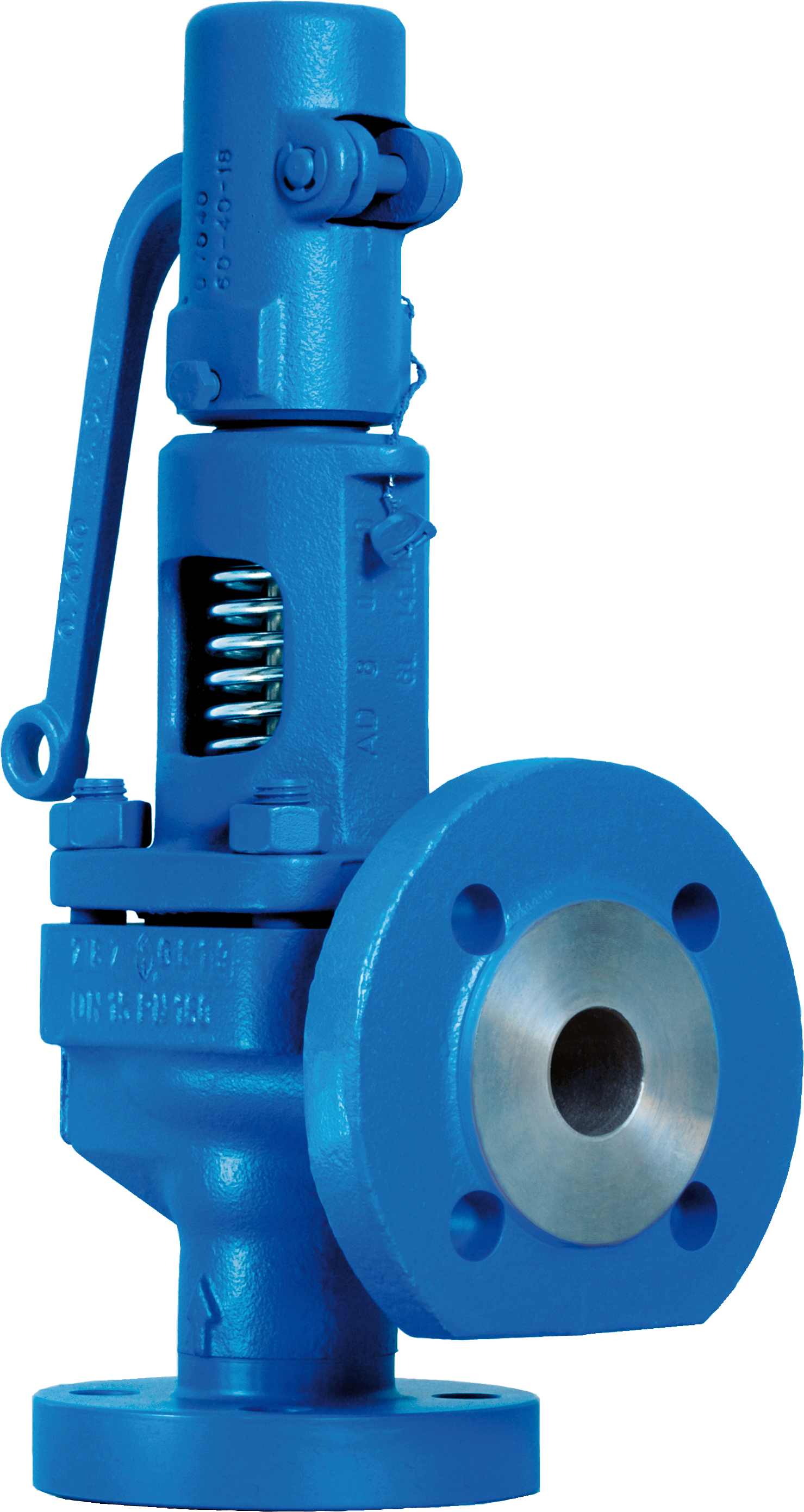

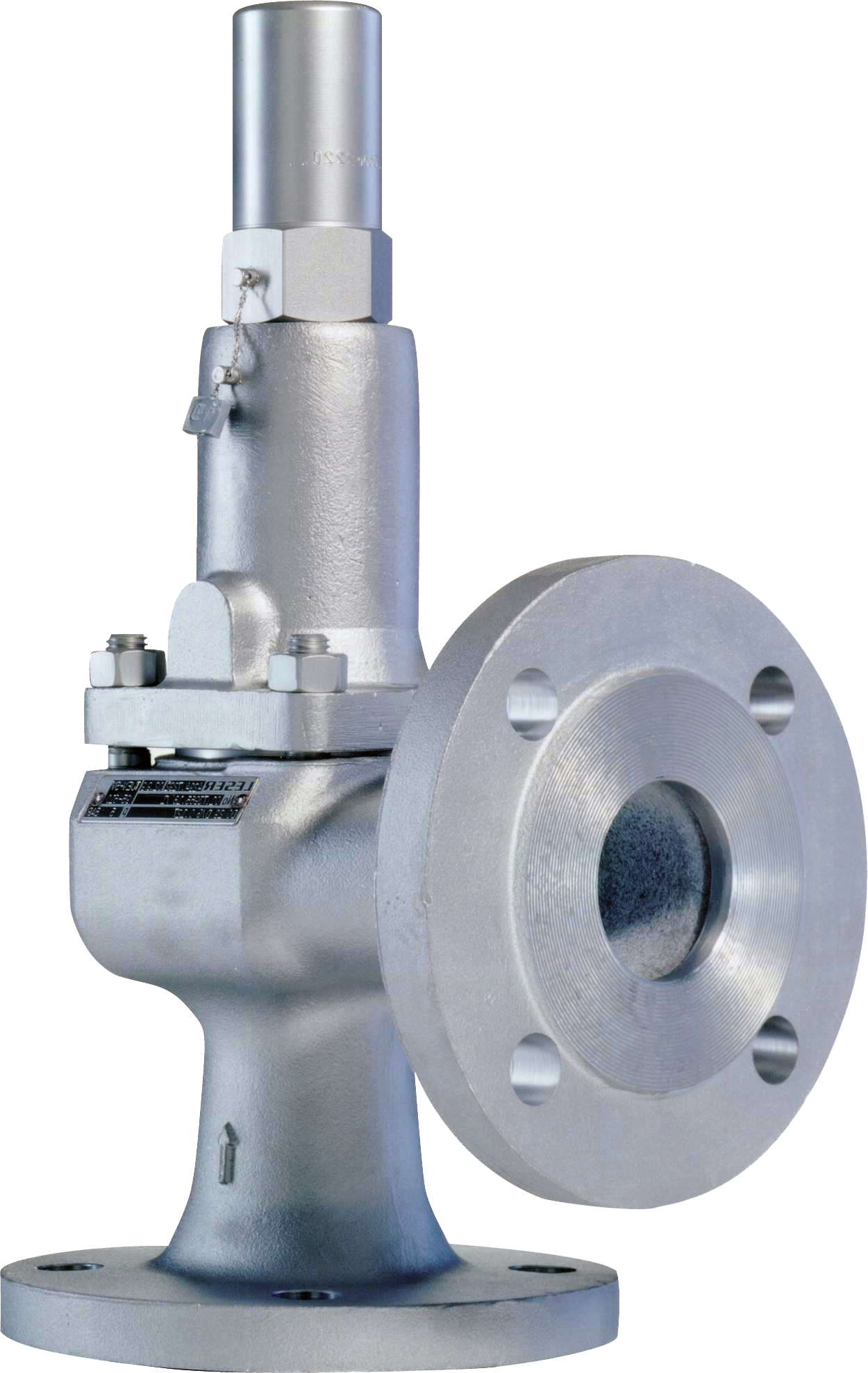

Type 431 / 433 PN 160

Safety valve with medium capacities and high proportional opening area for high pressures

Approbations

LESER Modulate Action safety valves of Type 431 / 433 PN 160 are designed, marked, produced and approved according to the requirements of the following regulations:

  • Approbation LESER CE
  • Approbation de l'EAC LESER
  • Approbation de LESER China TS

Technical specifications Type 431, 433 PN 160

Diamètre nominal à Entrée
DN 15 | 1/2"
Diamètre réel Orifice d₀
12 mm | 0.47 in
Superficie réelle Orifice A₀
113 mm² | 0.175 in²
Pression
0.3 - 160 bar | 4.35 - 2320.6 psig
Évaluation des brides Entrée
PN 63 - PN 160 | CL300 - CL600
Température (selon la norme DIN EN)
-270 to 450 °C | -454 to 842 °F
Corps Matériau
1.0619, 1.4408
Valve Connection
Flange acc. to DIN EN 1092 or acc. to ASME B16.5
Soufflet Matériau (optional)
Stainless steel and elastomer
Type de chargement
Spring loaded
Approbations
PED/ DIN EN ISO 4126-1, PED/ AD 2000-Merkblatt A2, AQSIQ, EAC
Sociétés de classification
LR, RINA, DNV GL, BV, ABS
Spécial
Units converted; No approvals acc. to ASME
